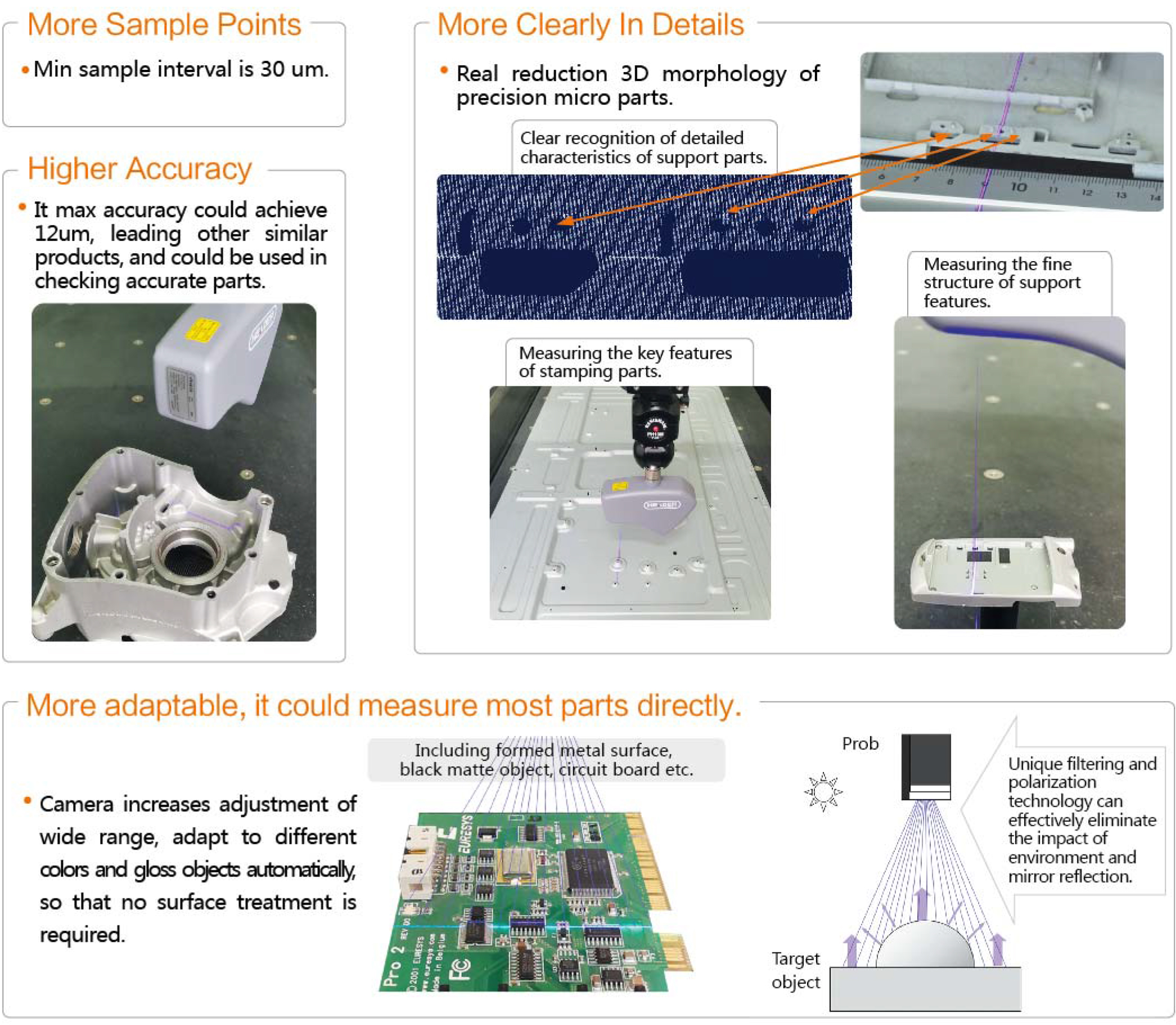

Min sample interval is 30 um.
Real reduction 3D morphology of precision micro parts.
lt max accuracy could achieve12um, leading other similar products, and could be used in checking accurate parts.
More adaptable, it could measure most parts directly.
| Model | Category | Power | Measuring Distance (mm) close | Measuring Distance (mm) middle | Measuring Distance (mm) far | Measuring Depth(mm) | Scanning width (mm) closer | Scanning width (mm) middle | Scanning width (mm) far | Sample Density (Min sample interval) | Sample Points | Sample Speed | Probe Size | Probe Weight | Measuring Accuracy | Interface Compatibility |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LS60+ | 90 | 125 | 175 | 85 | 60 | 72 | 86 | 100μm | 768 points/line | 12000 points/sec | 155×122×51mm | 345g | 40μm | PH10T,PH10M,No probe head |
